MOD-1E

Single Pump - Electrically Activated
  • Jet-set Spray systems - MOD-1E

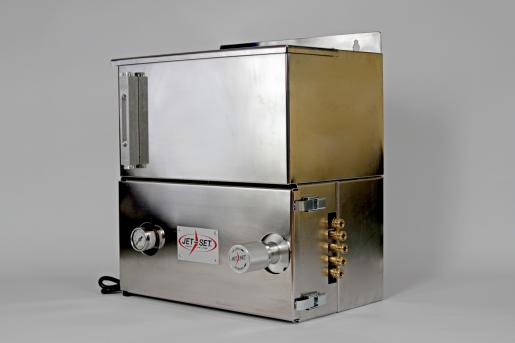

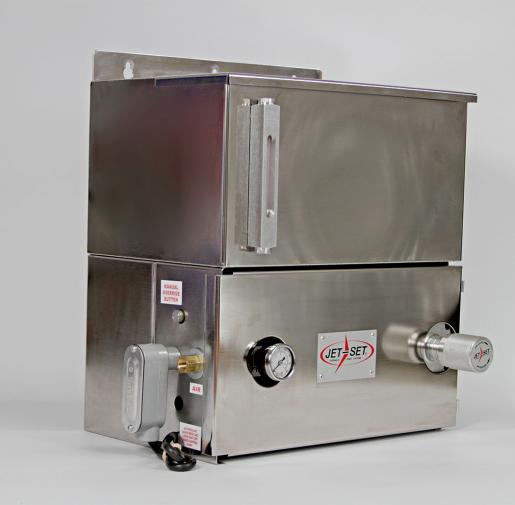

MOD-1E: JET-SET® spray system with a 5 Gallon stainless steel tank. Includes: One JET-SET 9100 stainless steel piston pump (0-5cc per stroke) with 5 outlets. Electrical solenoid to receive an external signal for system activation. The MOD-1E comes standard 110v unless specified

The electric solenoid in the module is wired into the machine so that a shot of lubrication is given at the beginning of each machine cycle.

The MOD-1E comes stantard with a 9100 pump that will give millions of cycles of maintenence free operation. All Jet-Set pumps provide easy volume regulation by just turning down the large knob on top of the pump. You can regulate the output from 0 to 5 cc per cycle.

The MOD-1E may also be supplied with a 1401 timer, 1471 counter or both, to either count cycles or give more than one shot per cycle

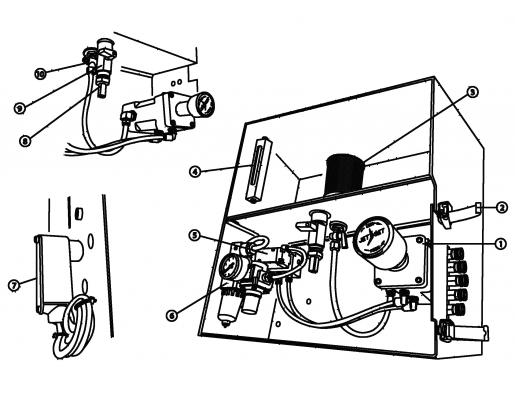

Individual Part Numbers:

1
9100
Large Stainless Steel Pump
2
810
Draw Latch
3
620
Stainless Steel Filter
4
525
Sight Glass W/Fittings
5
1400-N-NU
Solenoid Valve and Base
6
1501
Air Regulator
7
837
Electrical Elbow
8
725
Tube Stem
9
724-L
Male Ball Valve
10
505-A
Brass Stopcock
JET-SET® - MOD-1E System Priming Demo
The JET-SET® MOD-1E is our most popular turn-key, off the shelf system we sell. In this video Nikki and Adam go through the easy process of priming the MOD-1E.
